HDMI Audio Extractor Splitter, One HDMI Input, One HDMI Output + Optical SPDIF Digital and RCA L/R Analog Audio Out from iArktech
(click images to enlarge)
Description of HDMI Audio Extractor Splitter, One HDMI Input, One HDMI...
We are happy to offer the excellent HDMI Audio Extractor Splitter, One HDMI Input, One HDMI Output + Optical SPDIF Digital and RCA L/R Analog Audio Out.
With so many on offer recently, it is wise to have a make you can recognise. The HDMI Audio Extractor Splitter, One HDMI Input, One HDMI Output + Optical SPDIF Digital and RCA L/R Analog Audio Out is certainly that and will be a perfect buy.
For this price, the HDMI Audio Extractor Splitter, One HDMI Input, One HDMI Output + Optical SPDIF Digital and RCA L/R Analog Audio Out is highly respected and is a regular choice amongst most people. iArktech have included some excellent touches and this equals good value for money.
Manufacturer Description
HDMI resolutions: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Video color format: 24bit/30bit/36bit deep color
Max bandwidth: 225MHz
Max band rate: 6.75Gbps
Input HDMI cable length: up to 10m/30ft (AWG26 standard cable)
Output HDMI cable length: up to 15m/49ft (AWG26 standard cable)
Power adapter: AC (50/60HZ) 100V-240V input; DC 5V/1A output
Video color format: 24bit/30bit/36bit deep color
Max bandwidth: 225MHz
Max band rate: 6.75Gbps
Input HDMI cable length: up to 10m/30ft (AWG26 standard cable)
Output HDMI cable length: up to 15m/49ft (AWG26 standard cable)
Power adapter: AC (50/60HZ) 100V-240V input; DC 5V/1A output
Product Features

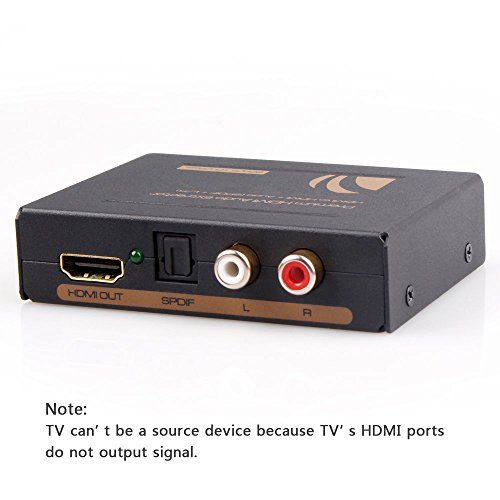

Extract Audio from HDMI: One HDMI Input to One HDMI Output, One SPDIF Audio Output and One RCA R/L Stereo Audio Output. Note: DO NOT set TV as a source device because TV's HDMI ports do not output signal
A Perfect Solution: Designed to split 5.1CH/2CH audio from HDMI device like PS3/4, Chromecast, Blu-ray player, cable box, Fire TV, Apple TV, etc. Perfect to use if your receiver/sound bar/surround system does not have HDMI input. Note: Not support HDMI ARC (Audio Return Channel)
Three Audio EDID Settings: 2CH, 5.1CH and Pass for different configurations. Optical SPDIF Output supports incoming 2CH PCM, 5.1CH Dolby Digital, DTS (Note: Note support Dolby Digital Plus, Dolby TrueHD and above); RCA L/R Output supports incoming 2CH PCM stereo audio
Premium Quality: Supports Full HD 1080P, 3D and 36-bit deep color with sync sound; made by metal enclosure for excellent heat dissipation and longevity
Packing & Warranty: 1x HDMI Audio Extractor, 1x5V/1A (support 100V-240V input) power adapter, 1xUser Manual; Plug and Play & One year hassle free warranty
