Description of Velleman K8200 3D Printer Kit by VELLEMAN
Top 3D Electronics bestsellers are proud to offer the brilliant Velleman K8200 3D Printer Kit.
With so many available today, it is wise to have a make you can trust. The Velleman K8200 3D Printer Kit is certainly that and will be a great acquisition.
For this reduced price, the Velleman K8200 3D Printer Kit is highly recommended and is a popular choice for many people. VELLEMAN have added some great touches and this results in great value.

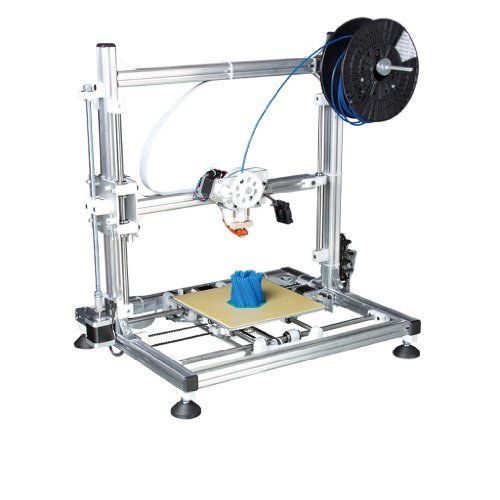

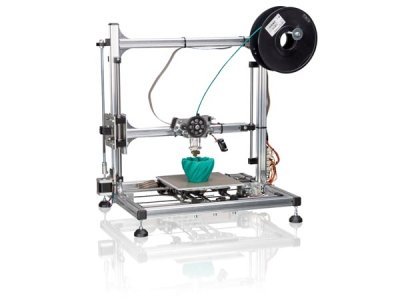

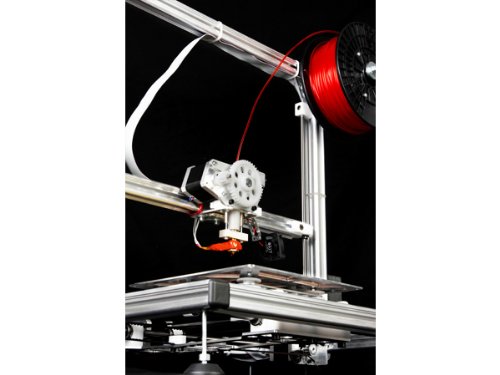

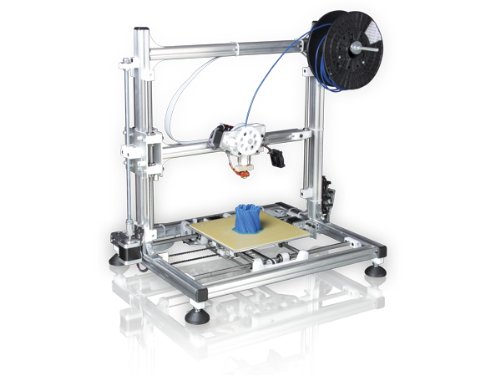

VELLEMAN K8200 3D PRINTER KIT. Did you ever want to create your own products? Did you dream that your 3D creations became real products? This is your chance with the Velleman K8200. It's a build it yourself 3D printer kit to print objects of maximum 20 x 20 x 20 cm (8"x8"x8") using PLA or ABS filament (3 mm plastic wire). It is an extremely fast, reliable and precise printer even when printing at higher speeds. The K8200 is compatible with all free RepRap software and firmware. It is made out of aluminum profiles and is easy to assemble, it leaves room to the user to freely alter the machine and modify it to their liking. The print bed is heated.
Linear ball bearings: 8 and 10 mm
Technology: FFF (Fused Filament Fabrication) for PLA and ABS
Power supply: 12 V / 3 A max.
FTDI USB 2.0 to Serial
Dimensions of printable area: 20 x 20 x 20cm / 7.87 x 7.87 x 7.87"
Maximum print speed: 150 to 300 mm/s (depending on the object to be printed)
Extrusion nozzle: 0.5 mm
Extrusion thermistor: NTC 100K
Extruded aluminum profiles: 27.5 mm / 1.08" wide
Movement: 4 NEMA 17 stepper motors
Dimensions: Width: 50cm / 19.7", Depth: 42cm / 16.5", Height: 62cm / 24.4", Weight: 9Kg / 19.84lbs
software: Repetier version 0.84 and up
included: 5m PLA black sample
The printer requires a computer to print (MAC, WIN or LINUX) and an internet connection to use the online manual and building instructions.
The open source hard and firmware are based on the GNU open source communities of RepRap and Sanguinololu.
Excelent 3D printer driving software can be downloaded
Nominal mechanical resolution:
X and Y: 0.015 mm (smallest step the printing plate can move in the X and Y direction)
Z: 0.781 µm (smallest step the printing plate can move in the Z direction)
Nominal printing resolution:
Wall thickness (X,Y): 0.5 mm
Layer thickness (Z): 0.20 - 0.25 mm
THIS IS AN ELECTRONIC KIT AND REQUIRES ASSEMBLY
